Gared Sports Volleyball Post 4" Above Floor Sleeve End Base 6407

See more by Gared

Save $1.34

$600.00

$600.00 - $600.00

$600.00

$598.66

$598.66 - $598.66

$598.66

In stock

SKU: 6407

Product Overview

In short

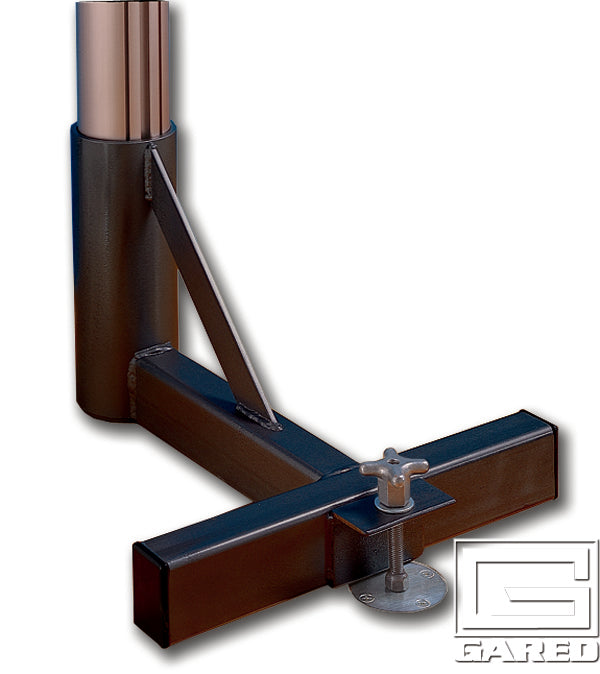

The Gared 6407 is an above-floor end T-base sleeve for 4" volleyball posts, designed for facilities where the sub-floor will not accept a traditional in-ground floor sleeve. The welded steel T-base bolts to a floor anchor (included) instead of relying on cables or rigid supports, and includes 2" non-marking transport wheels. It is compatible with Gared Volleyball Systems models 7200 and 7300, with modification to post lengths required.

✓ Authorized Gared Dealer — ships brand-new with full manufacturer warranty & support

Above floor sleeves are used with floor anchors when the floor will not accept traditional in-ground floor sleeves. The 6407 T-type base provides superior support and eliminates the need for dangerous cables or rigid supports, making it the practical option for facilities with an inadequate sub-floor structure.

The base is constructed of welded steel tubing with a black powder coat finish, and its sleeve accepts a 4" [101.6 mm] diameter volleyball post. Gross dimensions are 12" high x 21-1/8" long x 18" wide, and 2" non-marking transport wheels are included for moving the base on and off the court.

The T-base locks securely in place with a 1/2" threaded rod on a hand knob that screws into a 1/2-13 floor anchor. The anchor is included, but the style must be specified with the order: BX and B for wood floors installed directly over concrete, C for concrete or synthetic floors over concrete, and E for floating wood floors on sleepers or metal clip fasteners. The 6407 is sold as each.

Specifications

Specification	Value
Model	6407 Volleyball End T-Base, 4" Sleeve
UPC	00842299107141
Post Compatibility	Accepts 4" [101.6 mm] diameter volleyball post
System Compatibility	Gared Volleyball Systems models 7200 and 7300 (post length modification required)
Construction	Welded steel tubing, black powder coat finish
Frame Tubing	2" [52 mm] x 3" [76 mm] welded tubular frame
Gross Dimensions	12" high x 21-1/8" long x 18" wide
Transport Wheels	2" [52 mm] non-marking wheels included
Anchoring	1/2" threaded rod on hand knob into 1/2-13 floor anchor
Floor Anchor	Included; anchor type must be specified with order
Anchor Styles	151651460 BX, 151651461 B, 151651462 C, 151651463 E
Accessories	6408 Center T-Base, 6050 T-Base Pad Set, 6060 Center T-Base Pad
Sold As	Each
Shipping Weight	27 lbs / 12.25 kg
Shipping Method	UPS
Country of Origin	US

Compare Gared models

3 in. Sleeve	3.5 in. Sleeve	4 in. Sleeve	3 in. T-Base	3.5 in. T-Base	4 in. T-Base THIS
Mount Type In-floor grouted floor sleeve	Mount Type In-floor grouted floor sleeve	Mount Type In-floor grouted floor sleeve	Mount Type Above-floor end T-base with sleeve	Mount Type Above-floor end T-base with sleeve	Mount Type Above-floor end T-base with sleeve
Post Diameter Accepted 3 in. [76 mm] posts	Post Diameter Accepted 3-1/2 in. [89 mm] posts	Post Diameter Accepted 4 in. posts, 3.96 in. [100.6 mm] I.D.	Post Diameter Accepted 3 in. [76.2 mm] posts	Post Diameter Accepted 3-1/2 in. [89 mm] posts	Post Diameter Accepted 4 in. [101.6 mm] posts
Compatible Systems Gared 5000, 5100, 5300 series	Compatible Systems Gared 6000 and 6100 series	Compatible Systems Gared 7200 and 7300 series	Compatible Systems Gared 5000/5100/5300, post length mod required	Compatible Systems Gared 6000/6100, post length mod required	Compatible Systems Gared 7200/7300, post length mod required
Frame / Sleeve Depth 9 in. [229 mm] sleeve depth	Frame / Sleeve Depth 10 in. [254 mm] sleeve depth	Frame / Sleeve Depth 12 in. [355 mm] sleeve depth, 4 in. O.D.	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame	Frame / Sleeve Depth 2 in. x 3 in. welded tubular steel frame
Overall Dimensions —	Overall Dimensions —	Overall Dimensions —	Overall Dimensions 12 in. H x 20-1/8 in. L x 18 in. W	Overall Dimensions 12 in. H x 20-3/4 in. L x 18 in. W	Overall Dimensions 12 in. H x 21-1/8 in. L x 18 in. W
Sleeve Angle 3 degrees for post deflection under net load	Sleeve Angle 3 degrees for post deflection under net load	Sleeve Angle 3 degrees off vertical	Sleeve Angle —	Sleeve Angle —	Sleeve Angle —
Transport Wheels —	Transport Wheels —	Transport Wheels —	Transport Wheels 2 in. non-marking wheels included	Transport Wheels 2 in. non-marking wheels included	Transport Wheels 2 in. non-marking wheels included
Anchoring / Installation Grouted in floor; non-shrink grout by others	Anchoring / Installation Grouted in floor; non-shrink grout by others	Anchoring / Installation Grouted in slab; 4-3/4 to 5 in. floor cutout	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor	Anchoring / Installation 1/2 in. rod on hand knob into 1/2-13 anchor
Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Heavy wall steel tubing, powder coat	Material & Finish Welded steel, black powder coat	Material & Finish Welded steel, black powder coat	Material & Finish Welded steel, black powder coat
Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA	Country of Origin Made in USA
Ship Weight 6 lbs	Ship Weight 8 lbs	Ship Weight 7 lbs	Ship Weight 28 lbs	Ship Weight 27 lbs	Ship Weight 27 lbs
Best for Gyms installing permanent in-floor sleeves for 3 in. volleyball posts.	Best for Facilities anchoring 3-1/2 in. competition posts in 6000/6100 systems.	Best for Arenas installing heavy-duty 4 in. posts from 7200/7300 systems.	Best for Venues that cannot cut the floor and need portable 3 in. post support.	Best for Schools needing above-floor end bases for 3-1/2 in. posts on protected floors.	Best for Multi-purpose facilities setting up 4 in. competition posts without floor sleeves.
$267.51	$267.51	$267.51	$600.00 $598.66	$600.00 $598.66	$600.00 $598.66
Check ›	Check ›	Check ›	Check ›	Check ›	Viewing

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@joysportstore.com

More information on shipping and returns can be found here.

Warranty

1-Year Limited Warranty against defects in material or factory workmanship

Gared Holdings LLC warrants its equipment against defects in material or factory workmanship. Coverage length depends on the product line — this model carries the warranty noted above where listed. Gared's warranty periods run as follows:

Lifetime - Endurance playground systems: in-ground post, extension arm and bracing components.
25 years - Standard Duty and Heavy Duty playground posts (braced gooseneck and adjustable straight post structures).
10 years - volleyball uprights on OmniSteel, OmniLite, RallyLine and GoCourt systems, and economy playground posts.
5 years - FGP series football goalposts, manual and electric winches, curtain hoists and the SafStop gymnasium structure.
4 years - 2500 / 2500I Tournament breakaway goals.
3 years - winch assemblies, floor sleeves and cover plates, and regulation volleyball nets.
2 years - portable winch winders and selected backboards.
1 year - nets, padding, base adapters, height adjusters, badminton and tetherball systems, referee stands and accessories.

The warranty period starts on the date of substantial completion (installation). Defects must be reported to Gared in writing during the warranty period with proof of purchase and the purchase or installation date; Gared will repair or replace the defective equipment at its discretion, with shipping, insurance and installation costs borne by the owner.

Not covered: improper installation, use other than intended, unauthorized alterations or modifications, abuse or misuse, and damage from fire, flood, wind or lightning. Liability is limited to repair or replacement of the defective equipment. As an authorized Gared dealer, JoySportStore files warranty claims directly with the manufacturer on your behalf.

Frequently asked questions

Which volleyball posts fit the 6407 base?

The sleeve accepts a 4" [101.6 mm] outside diameter volleyball post and is compatible with Gared Volleyball Systems models 7200 and 7300. Modification to in-ground post lengths will be required.

Is the floor anchor included?

Yes, a floor anchor is included, but you must specify the style with your order: 151651460 Style BX, 151651461 Style B, 151651462 Style C or 151651463 Style E, depending on your floor construction.

What do I need for a multi-court setup?

The 6407 is an end base sold as each. For multi-court systems, the 6408 Center T-Base with 4" sleeve is the matching accessory.

Is JoySportStore an authorized Gared dealer?

Yes. JoySportStore is an authorized dealer for Gared Performance Sports Systems, so every unit ships brand-new with the full Gared manufacturer warranty and factory-backed support.

Product Documents
